Fujifilm XC15-45mm lens case

• DISCLAIMER: I DO ELECTRONICS AND 3D DESIGN SOLELY AS A HOBBY. THERE COULD BE ERRORS THAT CAN RESULT IN ALL KINDS OF DAMAGE. USE THESE DESIGNS AT YOUR OWN RISK.

Case for Fujifilm XC15-45mm lens.

Design utilizes 3mm x 2mm thick neodymium magnets.

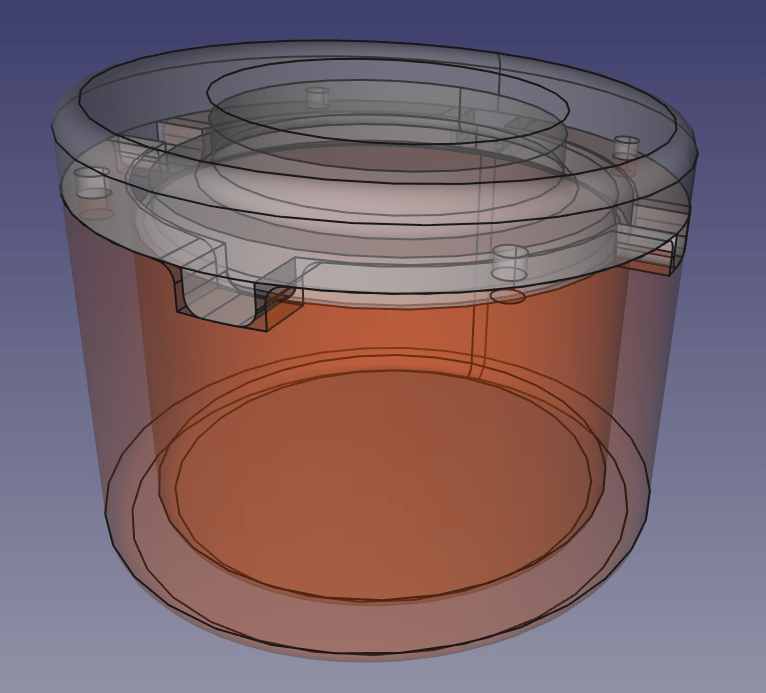

Schematic assembled:

• see also:
  • Fujifilm XC50-230mm lens case
  • Fujifilm camera battery box

You can download FreeCAD project file to tweak design or generated STL files ready for 3D printing:

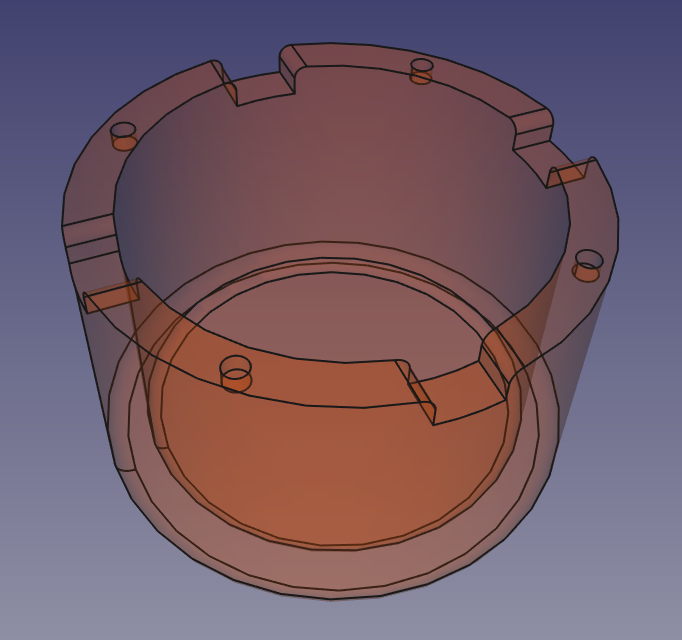

Body: body.stl

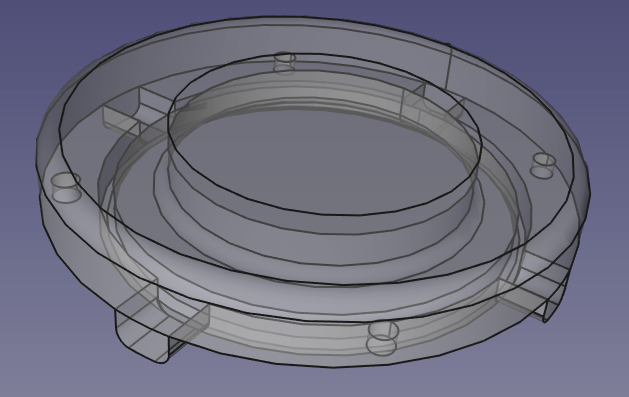

Cover: cover.stl

• Designs in this repository are released under Creative Commons Zero (CC0) license.
