Meiqqm portable dosimeter case

• DISCLAIMER: I DO ELECTRONICS AND 3D DESIGN SOLELY AS A HOBBY. THERE COULD BE ERRORS THAT CAN RESULT IN ALL KINDS OF DAMAGE. USE THESE DESIGNS AT YOUR OWN RISK.

This Geiger–Müller counter based nuclear radiation detector can be bought here.

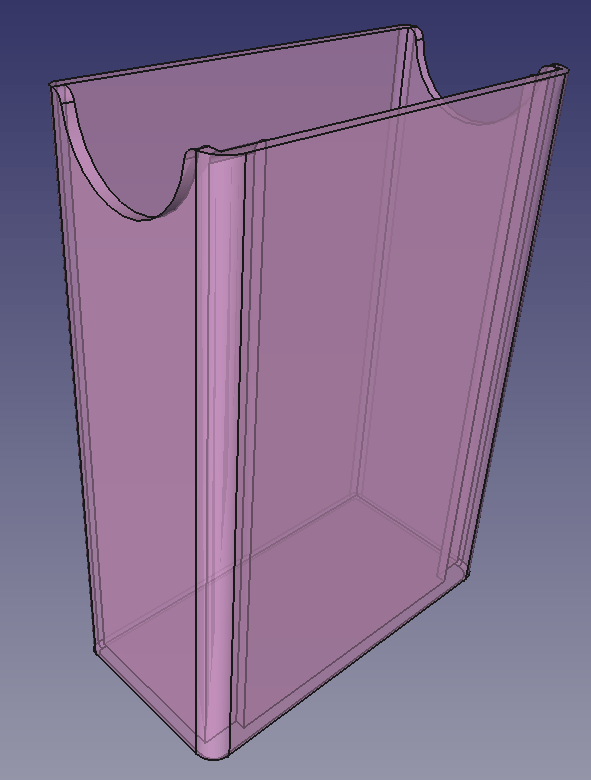

To better protect its display (for portable use), simple case have been made:

Case has internally small bumps on the sides. It is suggested to insert device with the front panel towards the bump. Bumps are to ensure that screen and buttons are not scratched by the case.

Download:

• STL file
• FreeCAD project

• Designs in this repository are released under Creative Commons Zero (CC0) license.
• Author:
  • Svjatoslav Agejenko
  • Homepage: https://svjatoslav.eu
  • Email: svjatoslav@svjatoslav.eu
