Case for microscope slides and cover slips.
Table of Contents
1. Overview
- DISCLAIMER: I DO ELECTRONICS AND 3D DESIGN SOLELY AS A HOBBY. THERE COULD BE ERRORS THAT CAN RESULT IN ALL KINDS OF DAMAGE. USE THESE DESIGNS AT YOUR OWN RISK.
Case for microscope slides and cover slips. Design utilizes 3mm x 2mm thick neodymium magnets. Holes for magnets are made intentionally bit larger for magnets to easily fit in. You would need glue to fix magnets in holes.
- Can fit:
- 10x slides (25.5mm x 75.5mm x 1.5mm)
- 10x cover slips: (20.5 x 20.5 x 0.5mm)

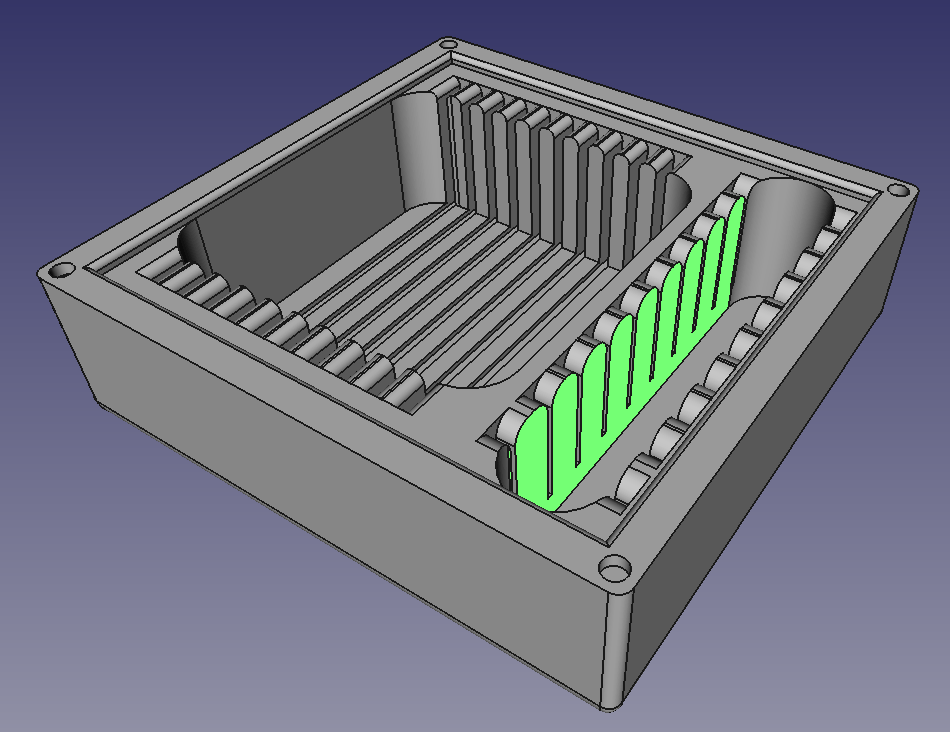

Body
Cover
Download:
| item | FreeCAD file | STL file |
|---|---|---|
| body | download | download |
| cover | download | download |
See also:
2. Repository
- Designs in this repository are released under Creative Commons Zero (CC0) license.
- Author:
- Svjatoslav Agejenko
- Homepage: https://svjatoslav.eu
- Email: svjatoslav@svjatoslav.eu
- See also:
2.1. Git repository
- Download latest snapshot in TAR GZ format
- Browse Git repository online
Clone Git repository using command:
git clone https://www2.svjatoslav.eu/git/physical.git
