NanoVNA case

• DISCLAIMER: I DO ELECTRONICS AND 3D DESIGN SOLELY AS A HOBBY. THERE COULD BE ERRORS THAT CAN RESULT IN ALL KINDS OF DAMAGE. USE THESE DESIGNS AT YOUR OWN RISK.

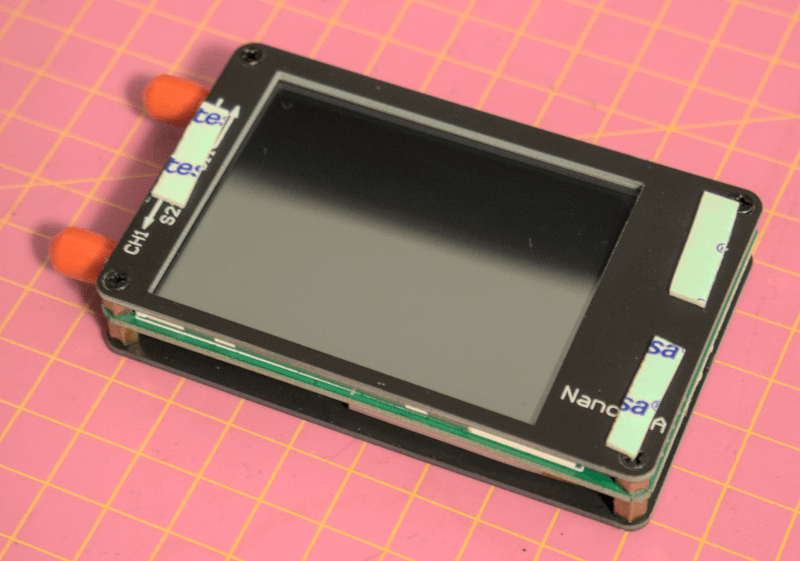

I felt that original NanoVNA case is too fragile for carrying this device around in the bag.

Therefore extra protective case was designed:

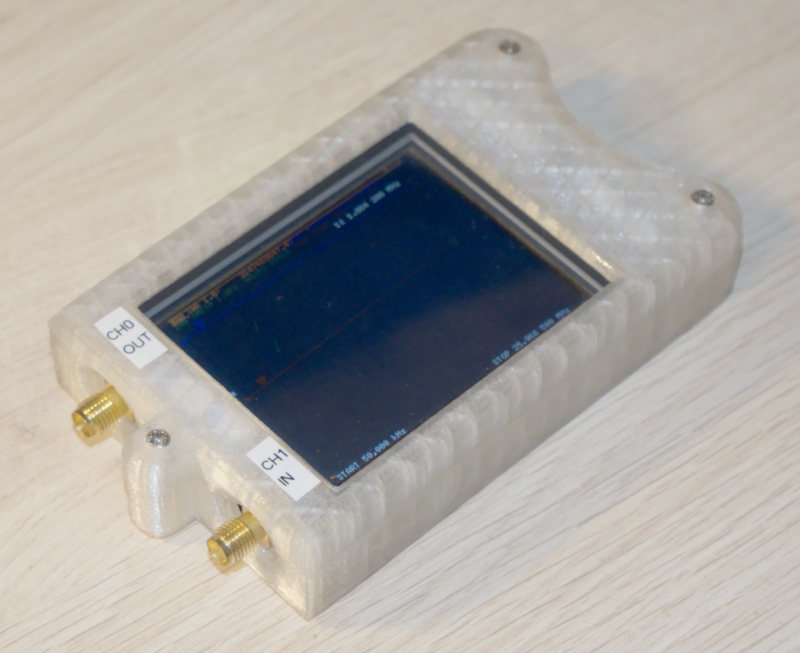

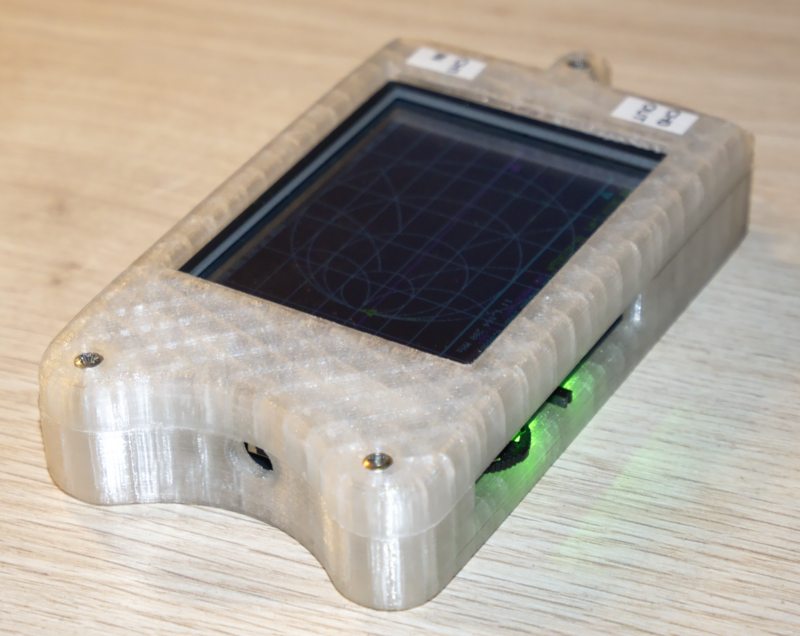

Extra surrounding body adds better protection while exposing RF connectors and buttons.

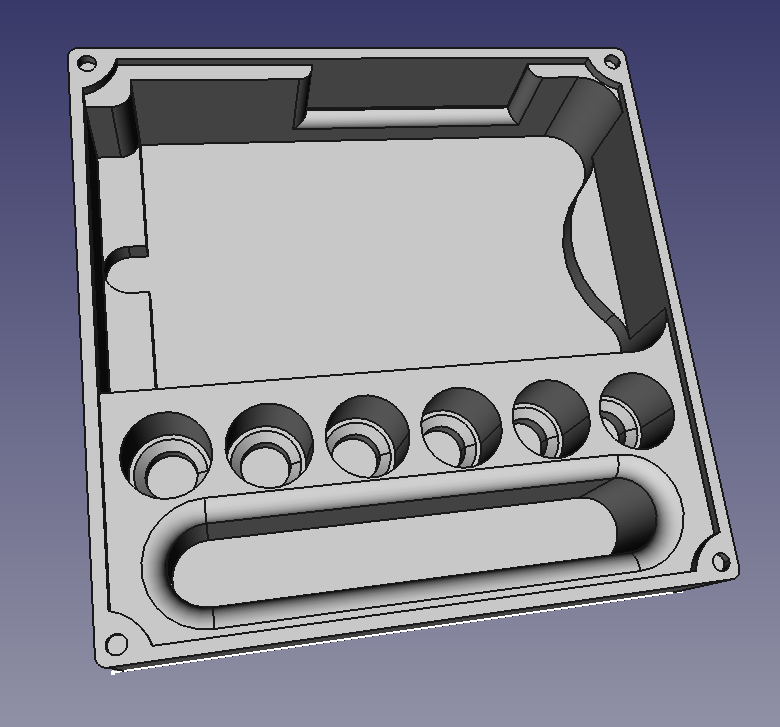

Also originally there is no housing for calibration and adapter connectors.

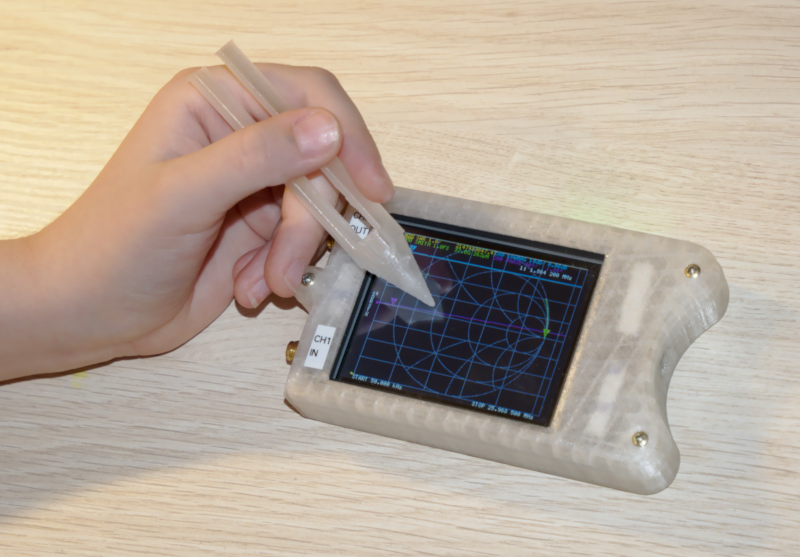

Now there is also stylus / pincers help using touch screen and picking connectors from the box.

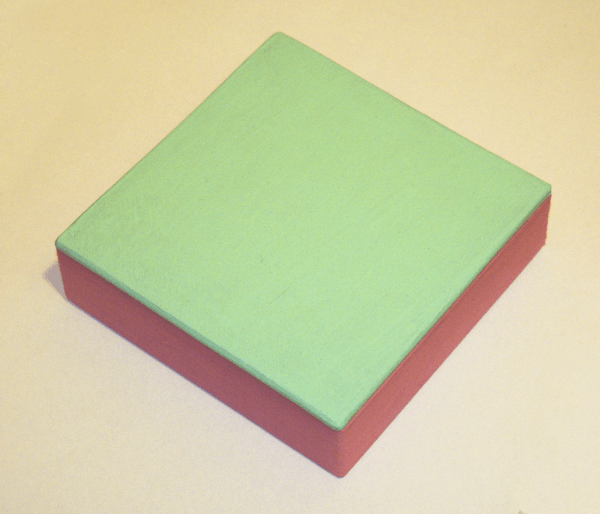

Cover attaches to the body using 3mm x 2mm thick neodymium magnets.

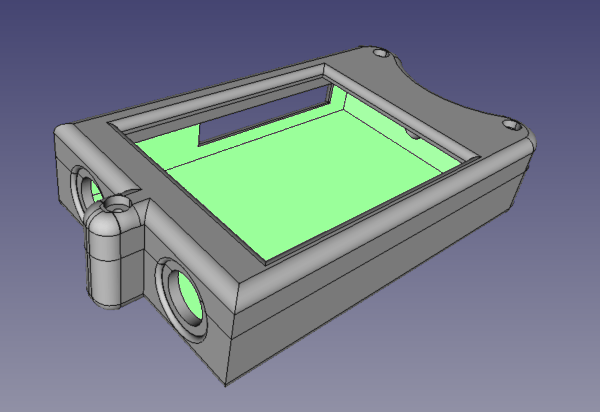

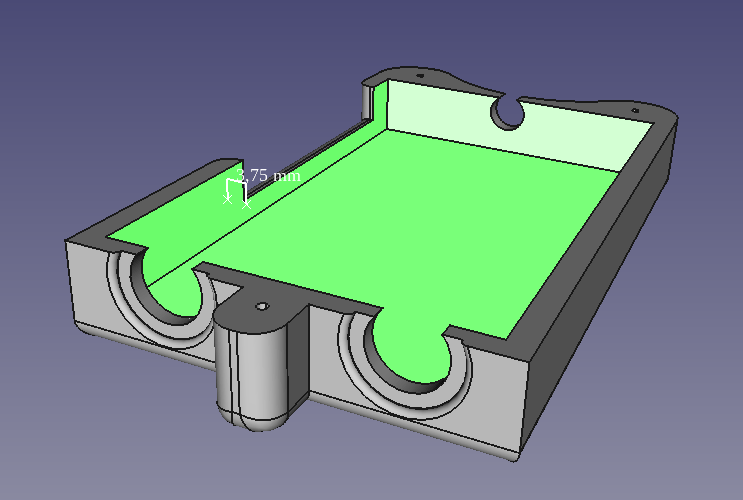

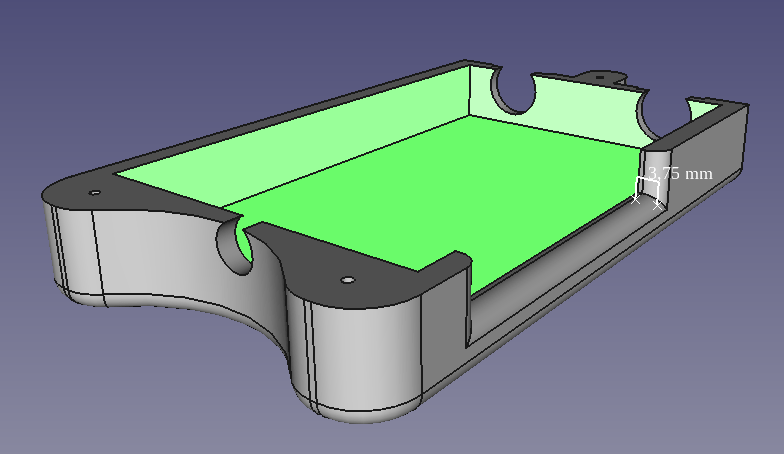

CAD drawing for inner box/case:

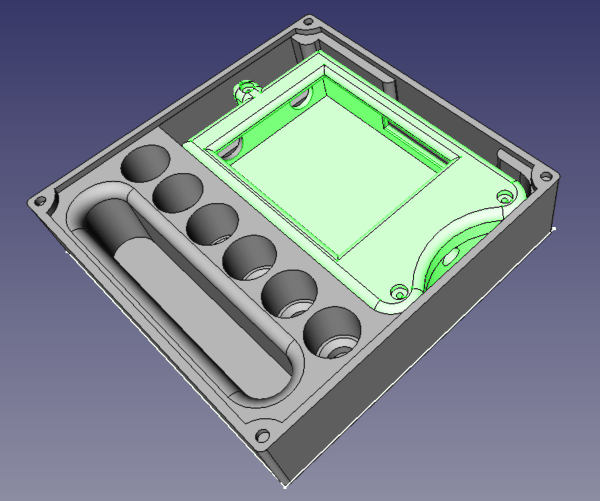

CAD drawing for inner box/case within outer box:

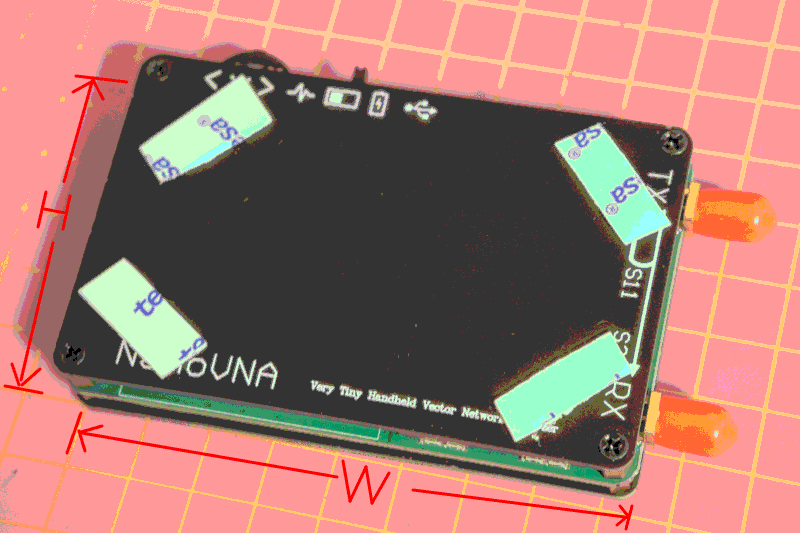

Note: There are multiple variants of NanoVNA. Current project is designed for NanoVNA with following body dimensions (excluding buttons and connectors):

Width	86.4 mm
Height	54.5 mm
Thickness	15.85 mm

Note: About 0.7 mm thick, soft double sided tape strips are added to back and front of NanoVNA to ensure that it is tightly secured in the case.

---

download: inner box

---

download: inner cover

---

download: outer box

---

download: outer cover

---

download: stylus

Files can be edited using FreeCAD.
