1. Overview

  • DISCLAIMER: I DO ELECTRONICS AND 3D DESIGN SOLELY AS A HOBBY. THERE COULD BE ERRORS THAT CAN RESULT IN ALL KINDS OF DAMAGE. USE THESE DESIGNS AT YOUR OWN RISK.


I am a big fan of stackable bins organizer. I find 2x2 bins with 21mm height are particularly good for storing rolls of wire. Also electric handheld screwdriver is good for twisting wire onto the roll. Therefore I designed rolls that have standard hexagonal hole on the bottom (for screwdriver compatibility):

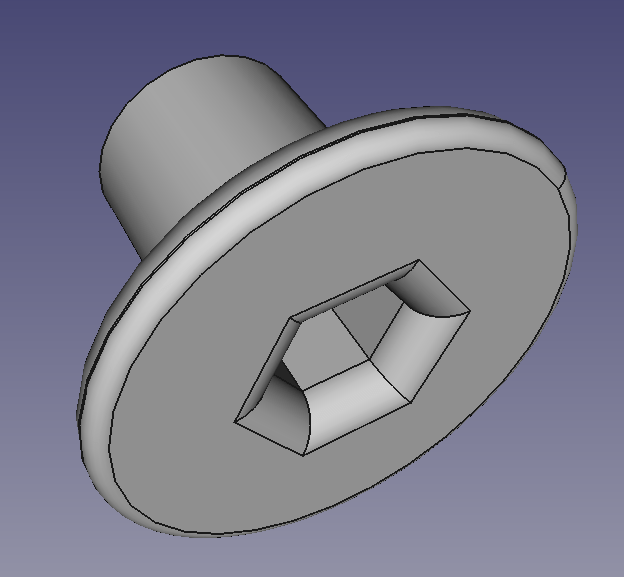

roll 27mm, body, 2.png

and 20mm total roll height, to be used with stackable bins organizer. Rolls are made from body and cover:

After printing, both parts have to be glued together. This is to avoid overhangs that are hard to print.

2. 27mm diameter roll

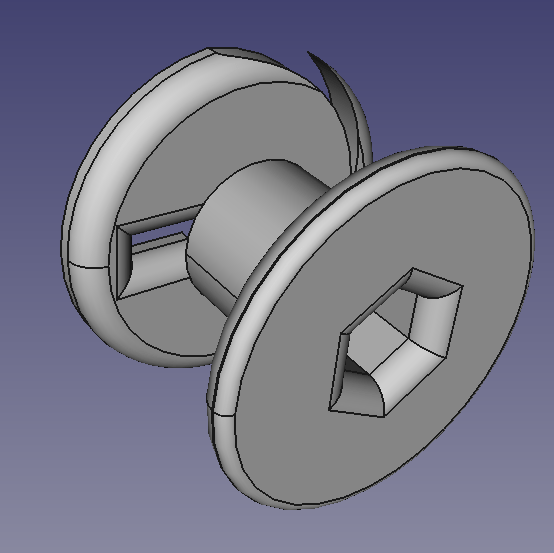

roll 27mm, assembled.png

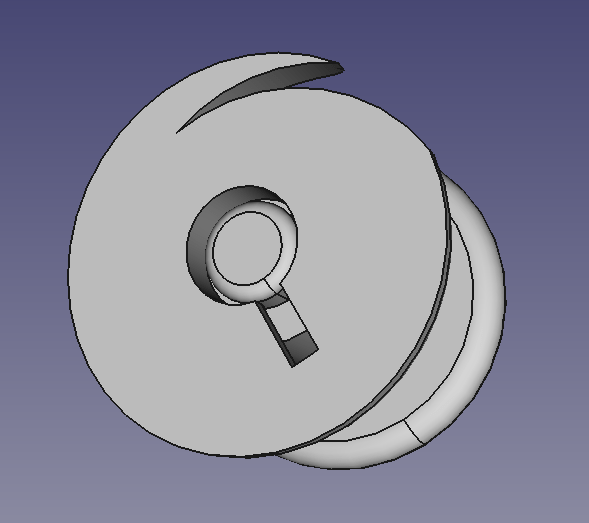

roll 27mm, assembled, 2.png

3. 55mm diameter roll

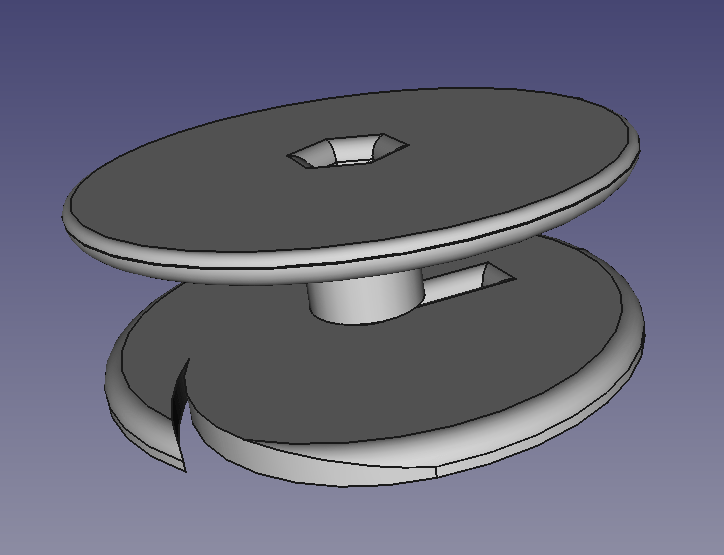

roll 55mm, assembled.png

4. Repository

4.1. Git repository
