Fujifilm XC50-230mm lens case

• DISCLAIMER: I DO ELECTRONICS AND 3D DESIGN SOLELY AS A HOBBY. THERE COULD BE ERRORS THAT CAN RESULT IN ALL KINDS OF DAMAGE. USE THESE DESIGNS AT YOUR OWN RISK.
• This design is released under Creative Commons Zero (CC0) license.
• Author:
  • Svjatoslav Agejenko
  • Homepage: https://svjatoslav.eu
  • Email: svjatoslav@svjatoslav.eu
• See also:
  • Other physical projects in this repository
  • Other projects hosted at svjatoslav.eu

Case for Fujifilm XC50-230mm lens.

Design utilizes 3mm x 2mm thick neodymium magnets.

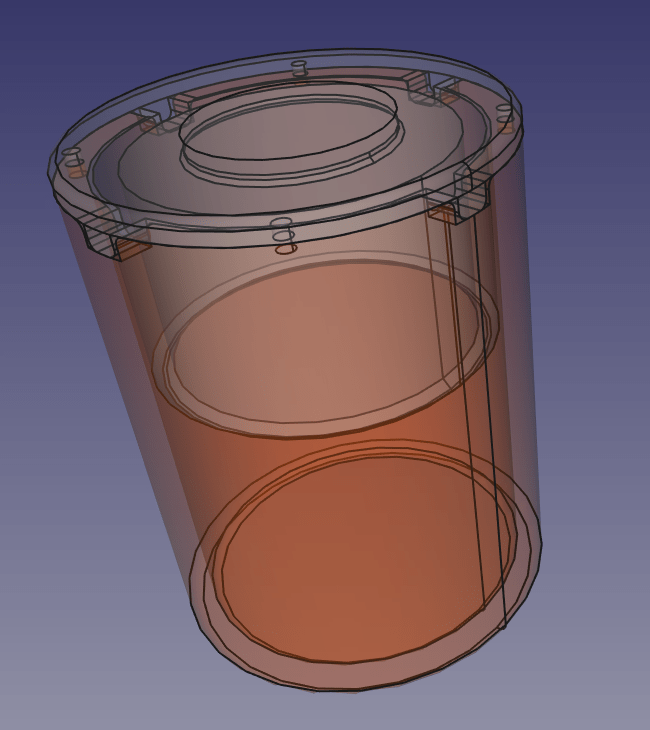

Schematic assembled:

You can download FreeCAD project file to tweak design or generated STL files ready for 3D printing:

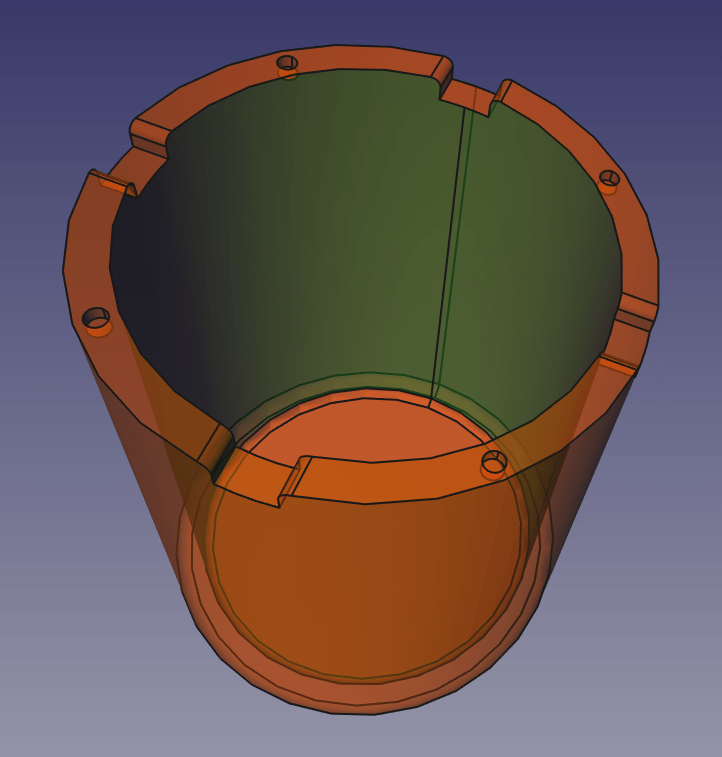

Body: body.stl

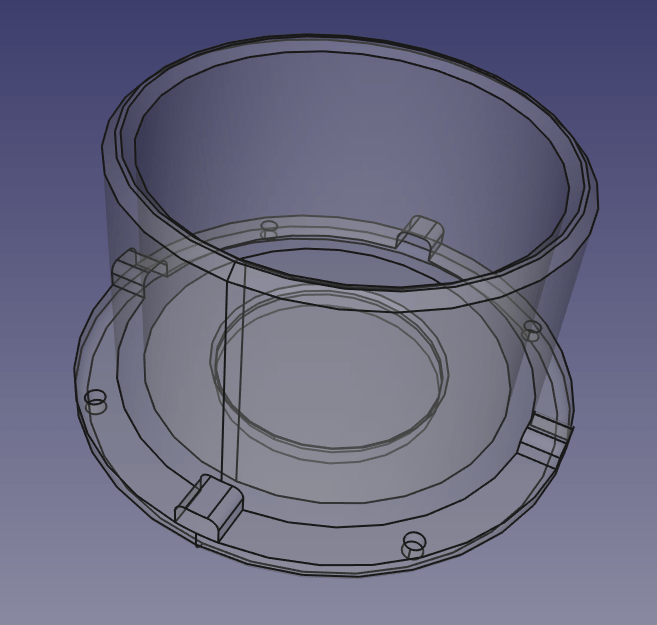

Cover: cover.stl
