35mm film copying device

• DISCLAIMER: I DO ELECTRONICS AND 3D DESIGN SOLELY AS A HOBBY. THERE COULD BE ERRORS THAT CAN RESULT IN ALL KINDS OF DAMAGE. USE THESE DESIGNS AT YOUR OWN RISK.
• This design is released under Creative Commons Zero (CC0) license.
• Author:
  • Svjatoslav Agejenko
  • Homepage: https://svjatoslav.eu
  • Email: svjatoslav@svjatoslav.eu
• See also:
  • Other physical projects in this repository
  • Other projects hosted at svjatoslav.eu

Device fixes 35mm film so that it can be digitized by photographing to digital camera in macro mode. Needs diffuse light source for background. I used white sheet of paper wrapped around book and illuminated by desk lamp.

Device consists of 3 parts:

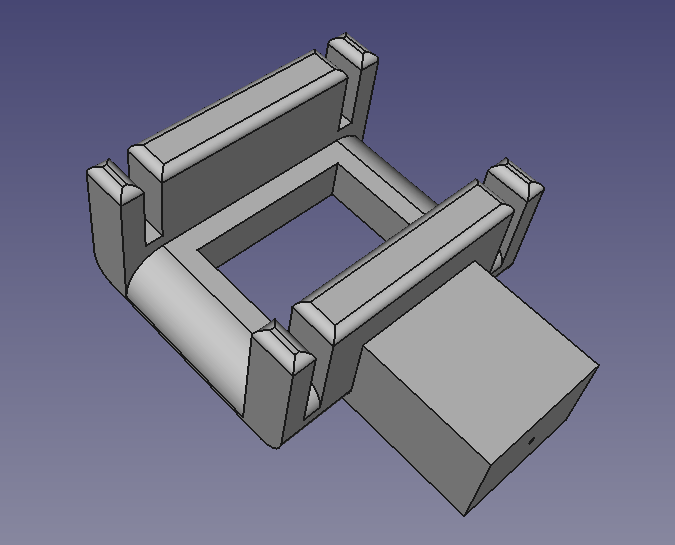

• body: download STL
  •

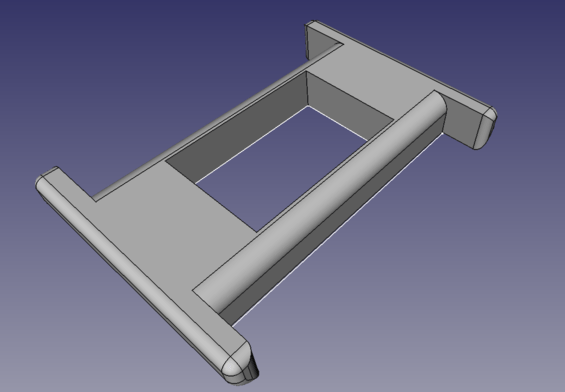

• cover: download STL
  •

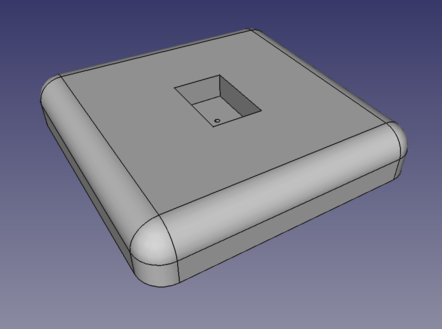

• bottom stand: download STL
  •

Body and cover are pushed together using 2 rubber bands on the sides. Bottom rectangular stand is attached to body via screw on the bottom.

FreeCAD files:

• body and cover
• bottom

Example photo photographed from film:

(click on image for full resolution version)
