BASIC applications collection
Table of Contents
1. Overview
This collection contains lots of applications that I wrote for learning and entertainment purposes, approximately around year 2000, using Microsoft DOS 6.22 mostly in Microsoft QBasic / QuickBasic.
If you don't want to use original DOS, one option is to run them by using Java based BASIC emulator called CRT Basic.
2. 2D GFX
2.1. Animations
Collection of various 2D animations. Good for demonstrating various algorithms and getting fun looking results quite easily.
A four-panel teaser of the collection: an interference moiré of overlapping circle rings, a DNA-style double helix assembled from marching circles, a starfield snowfall spelling "SNOW", and a rotating yin-yang symbol. Each demo in the collection is a small self-contained experiment in 2D animation – trigonometric motion, particle systems and palette effects rendered in real time.
2.2. Fractals

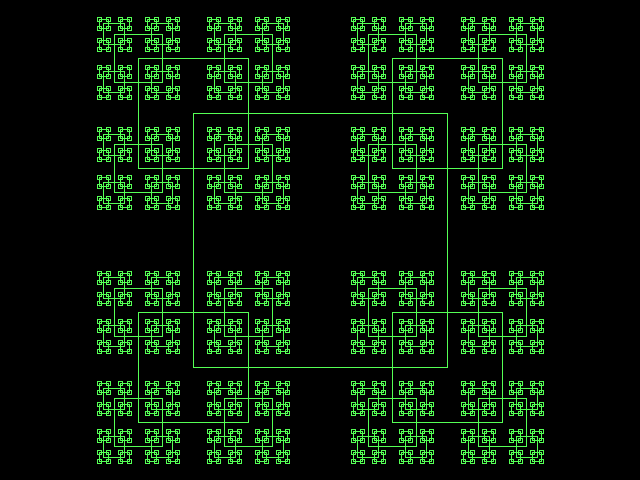

A single completed square fractal from the fractal squares program. The recursion starts from one large outlined square; every square then spawns a child square at each of its four corners with the size divided by 2.3, and the process repeats until the squares shrink below one pixel. The result is a self-similar lattice of light green outlines on a white background.
2.3. Spiral series
Small collection of programs that are result of exploratory programming, for fun. It started out from drawing spiral on the screen. Every iteration built upon previous result.
Four stages of the spiral series: a sweeping wireframe ribbon spiral, a spiral sheet twisted into a rising vortex, spirals plotted from scattered points, and a checkered sphere built entirely from spiral bands. What began as a single flat spiral on the screen grew, iteration by iteration, into shaded and textured spherical spirals rendered in 3D perspective.
2.4. Algorithmic textures
A four-panel sampler of the generated textures: soft diamond-square clouds, a brushed streak pattern, a wooden plank floor and marble-like veining. Every texture is produced purely algorithmically – noise fields, circular wave interference and recursive subdivision turned into pixel patterns.
2.5. Miscellaneous
2.5.1. Hello friend
This QBasic program is a simple yet engaging demonstration of 2D graphics capabilities. It showcases various graphical techniques such as pixel manipulation, geometric shapes, and simple animations.

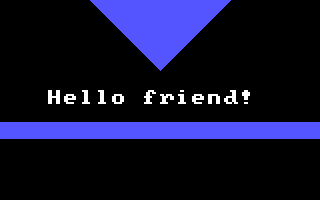

The greeting screen of the program: a large blue chevron triangle points down at the "Hello friend!" message, underlined by a solid blue bar. Behind this simple composition the code exercises the basics of QBasic graphics – plotting pixels, drawing geometric shapes and animating them frame by frame.
Download source code: Hello friend.bas
' 2D graphics demonstration. ' ' This program is free software: released under Creative Commons Zero (CC0) license ' by Svjatoslav Agejenko. ' Email: svjatoslav@svjatoslav.eu ' Homepage: http://www.svjatoslav.eu SCREEN 13 LOCATE 1, 1 PRINT " Hello friend!" ' Loop through each pixel in the screen to create an enlarged version of the current screen FOR x = 0 TO 160 FOR y = 0 TO 32 colorVal = POINT(x, y) x1 = x * 2 y1 = y * 2 + 90 LINE (x1, y1)-(x1 + 1, y1 + 1), colorVal, BF NEXT y NEXT x LOCATE 1, 1 PRINT " " ' Draw a series of circles along the screen FOR x = 0 TO 320 CIRCLE (x, 130), 10, 9 SOUND 0, .1 NEXT x ' Draw horizontal lines creating an X pattern FOR y = 0 TO 70 SOUND 0, .1 LINE (160 - 70 + y, y)-(160 + 70 - y, y), 9 NEXT y
2.5.2. People
This QBasic program is a slideshow presentation tool that includes animated transitions and effects.
The opening slide of the presentation: a glowing green "HEADER" title hovers over five color-coded stick figures while the ground under them ripples like a wave. The program plays a sequence of such slides, animating each scene and moving between them with transition effects.
Download source code: People.bas
2.5.3. Stroboscope
This QBasic program is an educational presentation on how to build a stroboscope. It uses graphical animations and text to illustrate the schematics involved in constructing a stroboscope. The program is designed to be visually engaging, with animated transitions and diagrams.

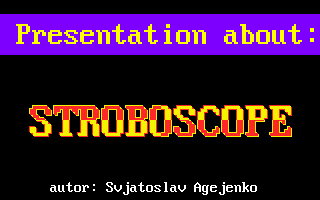

The title slide of the presentation: "Presentation about:" on a magenta banner, followed by the word "STROBOSCOPE" in large letters with a red-to-yellow gradient fill, signed by the author at the bottom. Animated transitions like this lead the viewer through the slides.

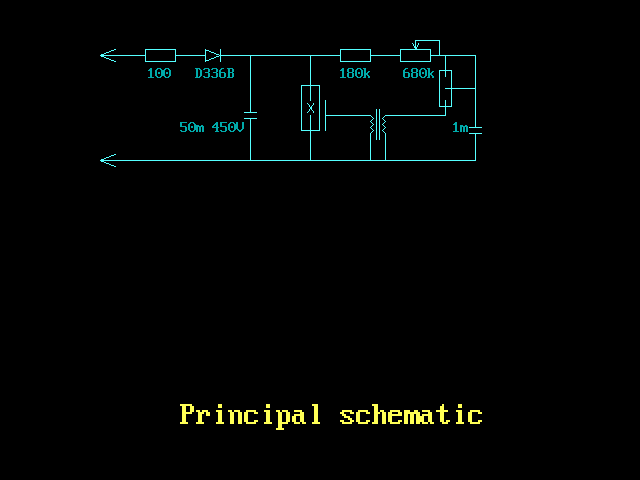

The "Principal schematic" slide: a cyan circuit diagram on a black background showing the stroboscope's parts – resistors, a D336B diode, a high-voltage capacitor, a trimmer and the trigger transformer. The program draws the whole schematic with line and shape primitives and annotates each component value.
Download source code: Stroboscope.bas
2.5.4. Truncated cone
This QBasic program is designed to draw a 3D representation of a truncated cone, which consists of three main parts: a top cylinder with diagonal hatching, a middle frustum (truncated cone), and a bottom smaller cylinder. The primary goal of this program is to test the viability of generating images of 3D shapes using code.

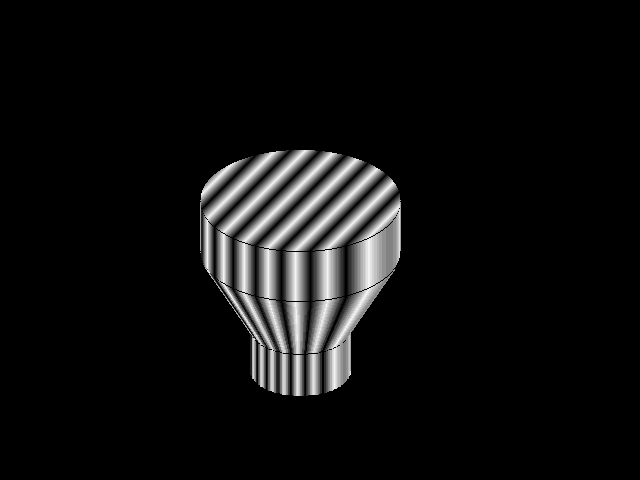

The finished drawing: a top cylinder with diagonal hatching on its end face, a tapering frustum in the middle and a smaller cylinder at the bottom, all outlined against the black screen. Vertical gradient bands across each surface fake the shading, testing how convincingly a 3D solid can be suggested with plain 2D line and fill primitives.
Download source code: Truncated cone.bas
' Program that draws truncated cone: ' - Top Part: A cylinder (with diagonal hatching). ' - Middle Part: A frustum (truncated cone) – it widens from the bottom cylinder to the top cylinder. ' - Bottom Part: A smaller cylinder. ' ' Goal of this program is to test viability of programming/code to generate images of 3D shapes. ' ' ' This program is free software: released under Creative Commons Zero (CC0) license ' by Svjatoslav Agejenko. ' Email: svjatoslav@svjatoslav.eu ' Homepage: http://www.svjatoslav.eu ' ' Changelog: ' 2000, Initial version ' 2024 - 2025, Improved program readability DECLARE SUB DrawLine (x%, y%, l%, clr%) DEFINT A-Z SCREEN 12 ' Set up the palette FOR a = 0 TO 16 OUT &H3C8, a OUT &H3C9, a * 4 OUT &H3C9, a * 4 OUT &H3C9, a * 4 NEXT ' Draw the pattern FOR x = 0 TO 200 y = SQR((200 - x) * x) / 2 DrawLine x + 200, y + 200, y * 2, t LINE (x + 200, y + 202)-(x + 200, y + 250), t IF x < 195 THEN LINE (300 + ((x - 100) / 2), y / 2 + 328)-(x + 200, y + 252), t END IF LINE (300 + ((x - 100) / 2), y / 2 + 330)-(300 + ((x - 100) / 2), y / 2 + 370), t NEXT x SUB DrawLine (x, y, l, clr) ' Calculate the initial color value c = 650 - y - x ' Adjust color to be within a specific range 1 IF c > 30 THEN c = c - 30 GOTO 1 END IF clr = c IF clr > 15 THEN clr = 30 - clr END IF ' Draw a vertical line with varying colors FOR y1 = y TO y - l STEP -1 c1 = c IF c1 > 15 THEN c1 = 30 - c1 END IF PSET (x, y1), c1 ' Increment the color and wrap around if necessary c = c + 1 IF c > 30 THEN c = c - 30 END IF NEXT y1 END SUB
3. 3D GFX
3.1. Miscellaneous 3D demos
A four-panel wireframe sampler of the 3D demo collection: cubes resting on a grid floor, a tilted plane propped on supports, an intersecting girder-like structure and an open box with a tiled floor. All of it is rendered by the same homegrown 3D pipeline – vertices transformed, edges projected and drawn as lines in real time.
3.2. 3D text in a room
A fly-through wireframe 3D room with red wireframe text hanging in
mid-air, drawn by a minimal hand-rolled software renderer. Glyph
outlines are read from font.dat, a tiny hand-drawn vector font
where every letter is a handful of points on a 3x3 grid joined by
lines.
3.4. 3D Synthezier
Parses scene definition language and creates 3D world based on it. Result will be in a wavefront obj file, witch can be then visualized using external renderer.
See directory:
3D GFX/3D Synthetizer/

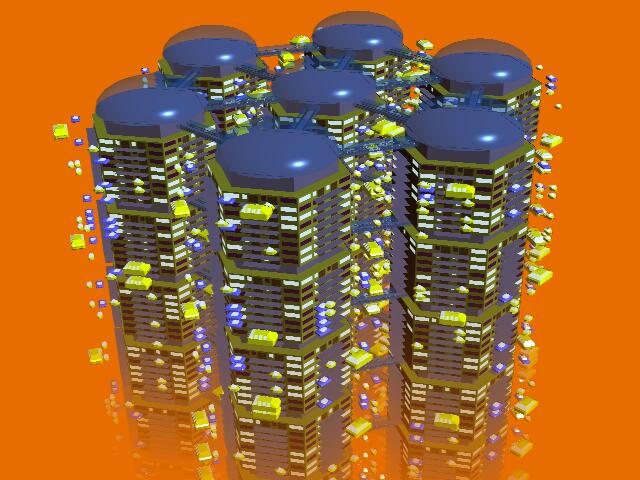

A ray-traced rendering of the generated "hexagonal city" scene: a cluster of glass hexagonal towers with dark domed roofs and lit windows, small colored cubes floating between them, all standing on a reflective floor. The scene was described in the program's own scene definition language, exported as a Wavefront obj file and then rendered with an external renderer.
3.5. Helicopter demo
This QBasic program is a demonstration of real-time 3D graphics rendering. Also it shows 3D transformations, fractal terrain generation, and simple animation.
A fractal algorithm is used to create a realistic terrain by iteratively subdividing and perturbing pixel values.
The program includes an animated sequence featuring a helicopter that moves across the terrain and picks up objects.
The demo opens with a glowing "HELICOPTER" title over the terrain, then the flight begins: a blue wireframe helicopter skims over a green wireframe landscape whose hills were grown by a fractal subdivision algorithm, dipping down to pick up the yellow objects scattered across the ridges. Terrain, craft and cargo are all transformed and projected in real time.
3.6. Swapping 3D engine
This QBasic program is a 3D wireframe rendering engine designed to render potentially infinite 3D worlds. It achieves this by dynamically managing world data through a partitioning system that loads and offloads cube-shaped fragments of the world into and out of RAM as needed. This allows for the efficient use of memory, making it possible to explore large virtual environments without excessive resource consumption.
World data is stored on disk, and only the necessary parts are loaded into RAM, allowing for the potential rendering of very large worlds.
Inside the wireframe world: the blue perspective lattice is the partitioning grid – the world is chopped into cube-shaped fragments that are paged between disk and RAM as the viewer moves. Colored wireframe objects (green letters, red and cyan shapes) inhabit the cells, and the counters in the top corners report the engine's position and loaded-fragment state.
A top-down view across the same world: the dense blue grid of partition cubes stretches to the horizon with wireframe objects embedded in it. Only the cubes near the viewer are kept in memory; the rest stay on disk until needed, which is what lets the engine present a potentially endless world on a machine with very little RAM.
Download source code: engine.bas
3.7. 3D land
This QBasic program creates a visually engaging 3D shaded landscape with perspective and distortion effects.
The program loops through each point in the grid, applying a cosine distortion based on the distance from the center of the grid. This creates a wavy, undulating effect across the landscape. Perspective transformation is then applied to give the illusion of depth.
The transformed coordinates are used to draw quadrilaterals, which are filled with colors that alternate to create a checkerboard pattern.
A yellow-and-black checkerboard sheet bulges into a smooth hill at its center and settles back again. The program walks a grid of points, displaces each one with a cosine of its distance from the center, applies a perspective projection and fills the resulting quadrilaterals in alternating colors, animating the distortion over time.
Download source code: 3D land.bas
DECLARE SUB DrawQuadrilateral (xCoord1%, yCoord1%, xCoord2%, yCoord2%, xCoord3%, yCoord3%, xCoord4%, yCoord4%, colorVal%) ' Program to render 3D shaded landscape with perspective and distortion effects. ' ' This program is free software: released under Creative Commons Zero (CC0) license ' by Svjatoslav Agejenko. ' Email: svjatoslav@svjatoslav.eu ' Homepage: http://www.svjatoslav.eu ' ' Changelog: ' 1999, Initial version ' 2024 - 2025, Improved program readability DECLARE SUB SetPalette () DEFINT A-Z ' Declare shared arrays for X and Y coordinates DIM SHARED xCoordinates(1 TO 40, 1 TO 40) DIM SHARED yCoordinates(1 TO 40, 1 TO 40) ' Set screen mode to 12: 640x480 pixels, 16 colors SCREEN 12 ' Initialize color palette SetPalette ' Set initial scaling factor scalingFactor = 1.5 ' Main loop start 1 : ' Loop through each point in the grid FOR rowIndex = 1 TO 40 FOR colIndex = 1 TO 40 ' Calculate the position with distortion xPos = 120 + (colIndex * 10) yPos = 200 + (rowIndex * 3) ' Apply a cosine distortion based on distance from center yPos = yPos - COS(SQR((colIndex - 20) ^ 2 + (rowIndex - 20) ^ 2) / scalingFactor) * 20 ' Apply perspective transformation xPos = (xPos - 320) * (rowIndex + 50) / 50 + 320 yPos = (yPos - 240) * (rowIndex + 50) / 50 + 240 ' Store the transformed coordinates xCoordinates(colIndex, rowIndex) = xPos yCoordinates(colIndex, rowIndex) = yPos NEXT colIndex NEXT rowIndex ' Draw grid based on the stored coordinates FOR rowIndex = 1 TO 39 FOR colIndex = 1 TO 39 ' Alternate colors for each box IF (colIndex + rowIndex) \ 2 <> (colIndex + rowIndex + 1) \ 2 THEN colorIndex = 0 ELSE colorIndex = 5 ' Calculate a brightness factor brightnessFactor = rowIndex + (colIndex / 3) ' Draw the quadrilateral with the calculated color and brightness DrawQuadrilateral xCoordinates(colIndex, rowIndex), yCoordinates(colIndex, rowIndex), xCoordinates(colIndex + 1, rowIndex), yCoordinates(colIndex + 1, rowIndex), xCoordinates(colIndex, rowIndex + 1), yCoordinates(colIndex, rowIndex + 1), _ xCoordinates(colIndex + 1, rowIndex + 1), yCoordinates(colIndex + 1, rowIndex + 1), colorIndex NEXT colIndex NEXT rowIndex ' Wait for user input and adjust the scaling factor userInput$ = INPUT$(1) scalingFactor = scalingFactor * 1.9 ' Clear the screen for the next iteration CLS ' If the scaling factor is too large, exit the program IF scalingFactor > 10 THEN SYSTEM ' Jump back to the main loop start GOTO 1 ' Subroutine to draw a filled box using line drawing SUB DrawQuadrilateral (xCoord1, yCoord1, xCoord2, yCoord2, xCoord3, yCoord3, xCoord4, yCoord4, colorVal) ' Fills a quadrilateral area by connecting the edges. ' It uses a scanline approach, storing intersection points, then drawing horizontal lines between those intersection points. ' Adjust color index based on position and brightness factor colorVal = colorVal + (yCoord2 - yCoord1) / 3.5 + (brightnessFactor / 8) + 4 ' Ensure the color index is within valid range IF colorVal < 0 THEN colorVal = 0 IF colorVal > 15 THEN colorVal = 15 ' Calculate the length of the longer side sideLength1 = SQR((xCoord1 - xCoord2) ^ 2 + (yCoord1 - yCoord2) ^ 2) sideLength2 = SQR((xCoord3 - xCoord4) ^ 2 + (yCoord3 - yCoord4) ^ 2) IF sideLength2 < sideLength1 THEN sideLength2 = sideLength1 ' Draw the box using lines FOR lineIndex = 1 TO sideLength2 xCoord5 = (xCoord2 - xCoord1) * lineIndex / sideLength2 + xCoord1 yCoord5 = (yCoord2 - yCoord1) * lineIndex / sideLength2 + yCoord1 xCoord6 = (xCoord4 - xCoord3) * lineIndex / sideLength2 + xCoord3 yCoord6 = (yCoord4 - yCoord3) * lineIndex / sideLength2 + yCoord3 ' Draw two adjacent lines to create a filled effect LINE (xCoord5, yCoord5)-(xCoord6, yCoord6), colorVal LINE (xCoord5 + 1, yCoord5)-(xCoord6 + 1, yCoord6), colorVal NEXT lineIndex END SUB ' Subroutine to initialize color palette SUB SetPalette ' Initializes the color palette for the screen. ' It sets the RGB values for each color index in the palette. FOR paletteIndex = 1 TO 16 ' Set the color values for each palette entry OUT &H3C8, paletteIndex OUT &H3C9, paletteIndex * 4 OUT &H3C9, paletteIndex * 4 OUT &H3C9, paletteIndex * 3 NEXT paletteIndex END SUB
3.8. Anaglyph
This QBasic program creates a real-time anaglyph projection featuring bouncing cubes. Cubes are created and placed within a 3D space. Each cube has its own position and velocity, which determine its movement and interactions within the environment.
Anaglyph images are used to provide a stereoscopic 3D effect when viewed with glasses that have two different colored lenses, typically red and cyan. The program provides insight into how anaglyph images work, which can be a fun and educational project for those interested in stereoscopy and 3D visualization.
Wireframe cubes tumble and bounce above a spherical grid arena, every edge drawn twice – once in red, once in cyan – with the offset between the two copies encoding depth. Viewed through red/cyan glasses the double image fuses into a stereoscopic scene; without them the colored fringes show exactly how the anaglyph parallax is constructed.
3.9. Ray casting engine
This QBasic program is a real-time 3D rendering engine that uses a ray casting technique to create a dynamic 3D landscape. The landscape includes various features such as hills and towers.
Real-time Rendering: The engine adjusts the rendering quality dynamically to maintain a constant frame rate of 10 frames per second, ensuring smooth performance even on older hardware like an Intel Pentium 200 MHz in DOS mode.
Users can move around the landscape using arrow keys and other specified keys to turn, look up/down, and even jump.

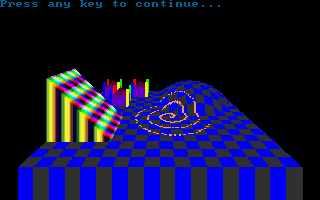

A first-person walk through the ray-cast world: a blue checkerboard floor, rainbow-striped pyramids and towers, colored pillars and hills ringed with contour bands. The engine casts rays through a height map and adapts its rendering resolution on the fly to hold a steady 10 frames per second, which is why surfaces smear into coarse stripes when the camera gets close.
The engine's frozen welcome screen: "Press any key to continue…" hangs above a still render of the same landscape – a rainbow-striped wall on the left, a contour-ringed mound on the right and the checkered ground plane stretching between them.
Download source code: Ray casting engine.bas
4. Games
4.1. Pomppu Paavo
Player controls small character that has to collect coins and move between screens. Player has to avoid contact with evil hedgehogs.
Gameplay of the first Pomppu Paavo: the little character hops across purple block platforms outlined in cyan, past trees and pink bushes, gathering coins while white hedgehogs patrol the ledges. The top line tracks collected coins and remaining lives; touching a hedgehog costs a life, and clearing a screen opens the way to the next one.
4.2. Pomppu Paavo 2
Player controls small character that has to collect coins and move between screens. Player has to avoid contact with evil snails.
The sequel trades the dark maze for daylight: blue sky with dithered clouds, grey brick platforms and green bushes. The hero in the red cap jumps between ledges collecting golden coins laid out in arcs, while red snails crawl along the bricks. The bottom line shows the coin purse and the remaining lives.
A mid-game still: coins arc over a gap between brick platforms, trees and bushes decorate the skyline, and the small red character stands at the left edge planning the next jump. The icons at the bottom left count collected coins and the three spare lives. Level graphics are loaded from separate image asset files at startup.
Source code organization:
├── img <- Visual game assets │ ├── 0.i01 │ ├── 1.i01 │ ├── 2.i01 │ ├── ... ├── Pomppu Paavo.bas <- Main game executable
4.3. Multiplayer game of worms
Game supports up to 5 players. Any amount of those players can be AI controlled. Game has multiple levels. After worms have eaten certain amount of fruits, game advances to the next level. Each worm has limited amount of lives. When worm runs into the wall or another worm, it loses one life.
A multiplayer match in progress on the blue grid arena inside a green brick wall: dotted worms in white, yellow, red and green weave around each other hunting the fruit. The side panel shows the current level, every player's score and remaining lives, including the AI-controlled worms; eating enough fruit advances everyone to the next level.
Levels are stored in 'lvl' files that are directly editable using text editor.
4.4. Checkers
This program is implementation of the game of Checkers, written in QBasic. It provides a mostly functional two-player experience on a 10x10 grid, where players can move and capture pieces according to the traditional rules of Checkers. User is playing against AI. AI is quite primitive. It has many hard-coded patterns that it tries to detect and utilize when possible.

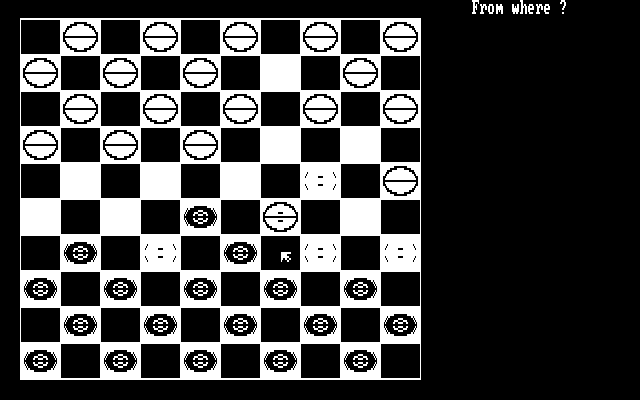

The monochrome 10x10 board in high-resolution two-color graphics, partway through a game, with the "From where?" prompt waiting for input. Moves are made with an arrow-key cursor and the ENTER key – pick up a piece, place it on a reachable square – while the program enforces the capture rules and the pattern-driven AI plans its reply.
4.5. Checkers 2
This more advanced implementation of checkers. User can play checkers against the AI. AI does not have hard-coded patterns anymore. Instead it does recursive lookahead for possible own moves and following possible opponent moves up to determined cut-off depth. While crunching through all possible moves (up-to fixed depth), it chooses the best possible move for itself.
Board size is reduced to 6x6 grid to gain reasonable AI performance. Possible combinations count exponentially explodes with larder board size.

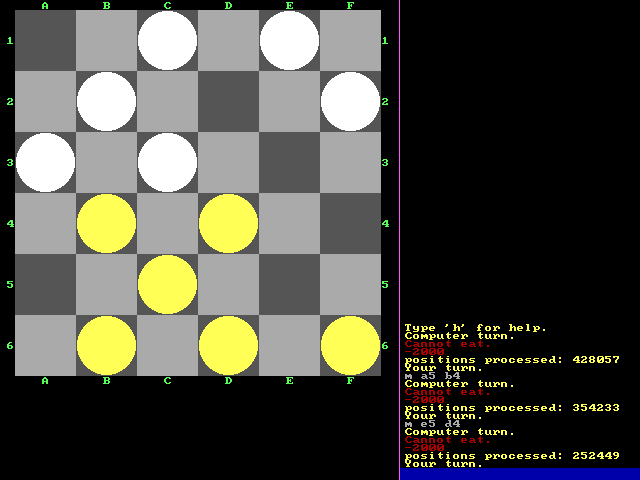

The 6x6 board of the second checkers program, with green column letters A-F and row numbers 1-6 along the edges. The transcript on the right is the AI thinking out loud: "positions processed: 428057" – hundreds of thousands of board positions evaluated by the recursive lookahead before each computer move, followed by prompts like "You may eat." when a capture is available.
5. Math
5.1. Game of life animation
This QBasic program creates a visually engaging 3D animation that combines elements of cellular automata with dynamic graphics. The program simulates a rotating 3D scene composed of cubes that appear and disappear according to Conway's Game of Life rules. This classic algorithm models the life cycles of cells on a grid, where each cell can live, die, or reproduce based on its neighbors.
The Game of Life is a zero-player game, meaning that its evolution is determined by its initial state, requiring no further input.
The main loop of the program continuously updates the camera position and rotation angles, generating a dynamic view of the 3D scene. Cubes are drawn based on the current state of the Game of Life grid, and the scene is rendered frame by frame.
Clusters of white and green wireframe cubes hang in dark space while the camera slowly orbits around them. Each cube is one live cell of Conway's Game of Life; on every step the grid is updated by the classic neighbor rules and the scene is redrawn, so whole constellations of cubes blink in and out of existence as the pattern evolves.
Download source code: Source code
5.2. Game of life studio
Game of life studio. One interacts with the Game of Life by creating an initial configuration and observing how it evolves. This program provides a platform to simulate, edit, and save different configurations of the Game of Life.

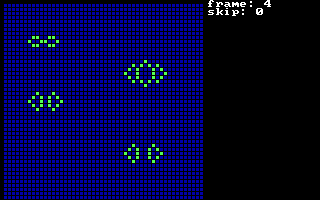

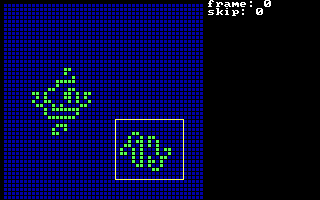

A running simulation on the blue editing grid: green cells form gliders, oscillators and still lifes scattered across the field, while the "frame: 4" counter in the corner tracks the current generation. Patterns evolve automatically once the simulation is started.
Editing mode: a white selection rectangle is drawn around a stored pattern at the bottom of the grid while a larger structure sits at the top. Configurations can be painted cell by cell, moved, saved and reloaded, turning the program into a small studio for experimenting with Game of Life patterns.
5.3. Math functions plot
Collection of programs that produce 2D and 3D plots of mathematical functions.
A collage of the plotting programs at work: a 2D function graph with its tangent line, a 3D wireframe surface rising into a central spike, layered polynomial curves, and a labeled sine/cosine table plot. Each program sweeps a mathematical function across the screen, scaling axes and drawing grid lines along the way.
5.4. Simulations
Collection of programs that implement simulations of various mathematical and physical effects.
Four of the physics and math simulations: a sharp impulse waveform, a spirograph-like rosette of nested dotted circles, a field of random dots from a cellular-style process, and paired oscillating waves. The collection covers gravity in 2D and 3D, wave interference, surface tension and explosions – each one a small numerical model animated step by step.
5.5. Truth table calculator
Program allows user to input logical equation. Thereafter program computes and displays all possible states for equation (aka. truth table).

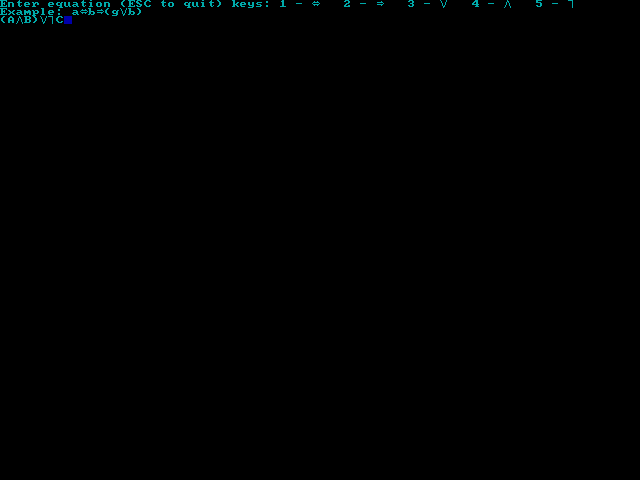

The equation entry screen: the prompt lists the numeric keys that insert logical operators (equivalence, implication, OR, AND, NOT) together with an example formula, and the user has typed in a three-variable equation ready to be evaluated.

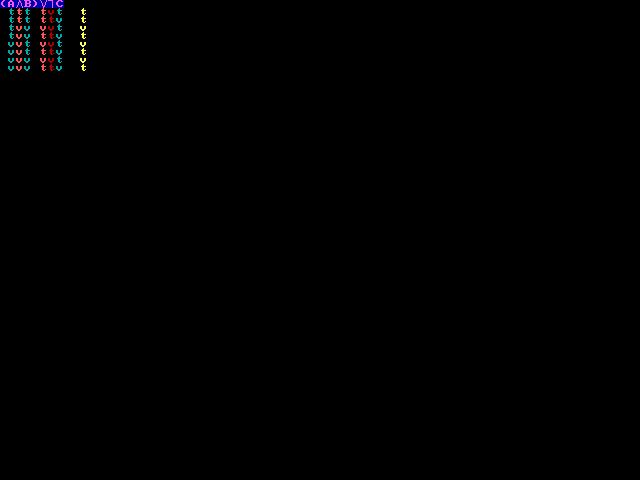

The computed truth table for the entered formula: one row per combination of the variables, with color-coded t/f values for every input column and the final result column on the right.
5.6. Multiplication trainer
This QBasic program is an educational tool designed to help users practice and test their multiplication skills. It is particularly useful for students learning basic arithmetic or anyone looking to brush up on their multiplication tables.
The program generates random multiplication questions by selecting two numbers between 0 and 9.
The user is prompted to enter the product of the two numbers. The program validates the input and provides immediate feedback.
The program keeps track of correct and incorrect answers. After the specified number of questions, it calculates the user's score and assigns a grade based on the percentage of correct answers.

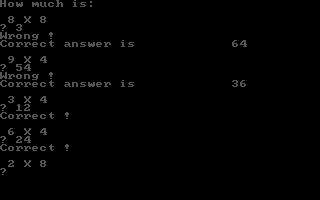

A training session in progress: the program asks "How much is: 8 X 8", rejects the answer 3 with "Wrong!" and shows the correct product, then accepts 12 for 3 X 4 with "Correct!". Questions are random pairs of single digits, and after the run the program scores the answers and assigns a grade.
A full session from greeting to quiz: the "Math teaching program" banner sits over a gradient backdrop while an animated red light bar sweeps the bottom of the screen and the program asks for the player's name and the number of questions (10). The drill then begins with "How much is: 1 X 5 ?" – the answer 5 earns a "Correct !" before the next pair, 6 X 8, is presented.
5.7. Alternative sine calculator
Here simple and finite function was invented to compute sine values. Custom sine values are shown alongside standard built-in sine function to compare results. 1 pixel vertical shift is intentional.

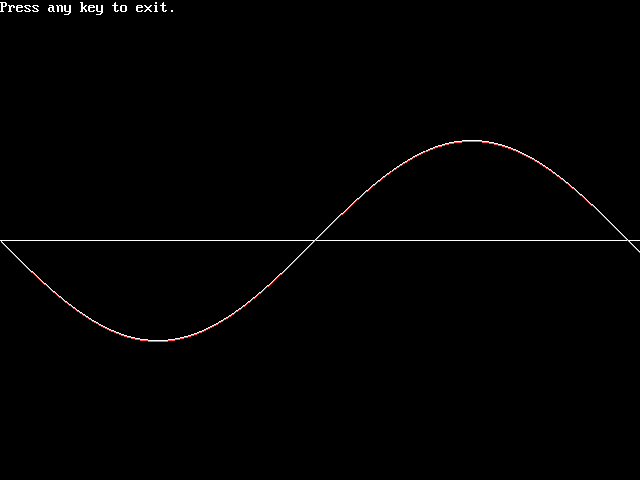

One full period of the sine wave plotted twice: one curve is the built-in SIN function and the fringe hugging it is the custom finite formula, deliberately shifted one pixel so the two can be compared. The near-perfect overlap shows how closely the invented approximation tracks the real thing.
5.8. Lottery analysis
This QBasic program is designed to analyze historical lottery data, providing various graphical representations and statistical insights. It is a useful tool for anyone interested in exploring patterns and trends in lottery numbers over time. The program reads data from a text file and offers multiple visualization options to help users understand the data better.
Note: In the example data there are made-up numbers and there are repetitions in example data on-purpose. Those repeating patterns become easily detectable in visual graphs.

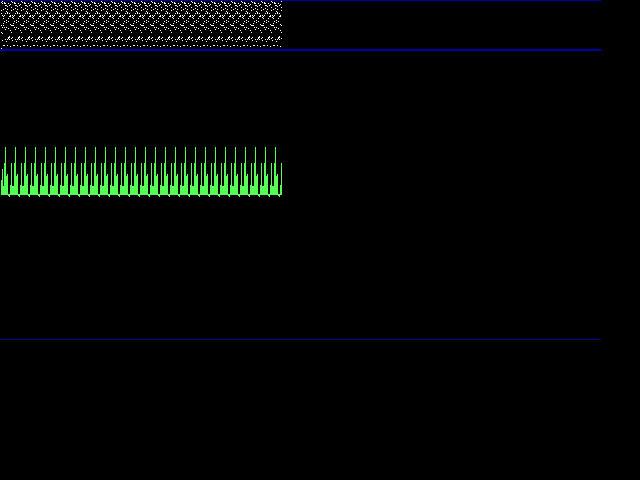

The dot graph view: every draw becomes a vertical column of green dots, one dot per drawn number, with the dense band of all historical draws packed across the top. Deliberately repeated patterns in the example data show up as matching columns.
Graphical Representations:
- Dot Graph
- Displays lottery numbers as dots on a graph, with vertical lines representing each draw. This visualization helps in identifying the frequency and distribution of numbers.

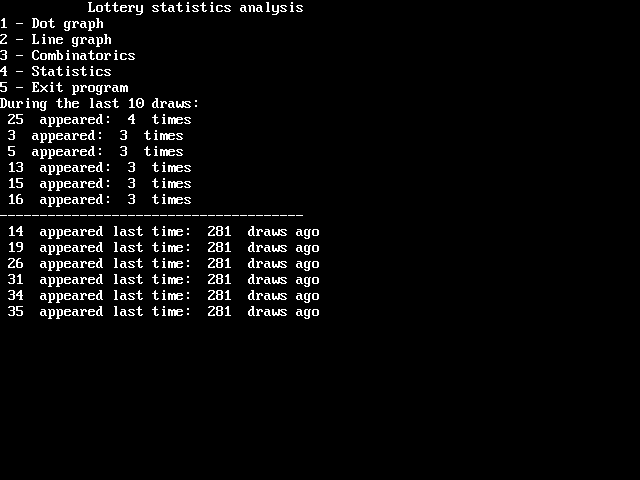

The main menu and the statistics view: the program offers dot graph, line graph, combinatorics and statistics modes, and here it lists how often each number appeared in the recent draws and how many draws ago it was last seen.
- Line Graph
- Shows a dynamic line graph connecting consecutive lottery numbers, providing a visual representation of number trends over time. This can be useful for spotting trends or anomalies in the data.
- Combinatorics Graph
- This graph fits the data to every possible resolution, making it easier to spot patterns that might not be visible at a single resolution. This feature introduces the concept of combinatorics and pattern recognition in data visualization.
The combinatorics view being drawn: the same draw data is re-fitted at every possible resolution, sweeping from a tiny mesh squeezed into the corner up to full-screen columns of colored segments. Watching the graph rebuild at each scale makes hidden repetitions in the data pop out at whatever resolution they live on.
6. Misc
6.1. Mouse driver for QBasic
QBasic, a popular programming language in the DOS era, lacks native mouse support. This limitation can be a hurdle for developers looking to create interactive applications. To bridge this gap, I developed a solution that involves a Terminate and Stay Resident (TSR) program written in x86 assembly and a QBasic demonstration program.
The demo program running under the TSR mouse driver: the green circle is the mouse cursor gliding across the graphics screen, and the readout in the corner ("X: 218 Y: 143", plus a frame counter) tracks its live position. The assembly TSR hooks the mouse interrupt and hands coordinates and button state to plain QBasic code.
6.2. Alien font
This QBasic program is a creative attempt to generate and display an imaginary alien script. The program constructs characters by subdividing a square into four triangles, creating an abstract and visually intriguing text pattern. It is an artistic exploration that can inspire those interested in procedural generation, graphics, and abstract art.

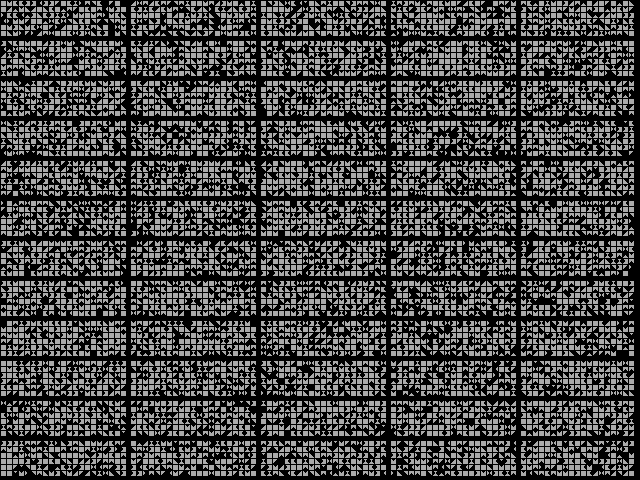

A page of the generated alien script: every glyph is a square subdivided into four triangles, some filled black and some left white, so each character reads as an abstract triangular mosaic. Strung together in dense rows, the procedural glyphs form a convincing but completely imaginary writing system.
6.3. Custom palette
This QBasic program generates a universally reusable color palette designed for a 256-color limit, which was a common constraint in older computer graphics. The program demonstrates how to create a diverse set of colors by varying the red, green, and blue components and then uses these colors to draw patterns on the screen.
Each component is varied from 0 to 5, and the resulting RGB values are output to the palette registers, creating a total of 216 unique colors (6x6x6).
After generating the color palette, the program draws a grid of colored squares. Each square is filled with a color from the generated palette, providing a visual representation of all available colors:

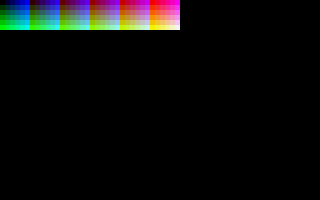

The generated 6x6x6 palette shown as vertical gradient strips: each column fixes two of the RGB components and sweeps the third from dark to bright, walking through greens, cyans, blues, magentas, reds and white. The 216 register values are written straight to the VGA palette ports.

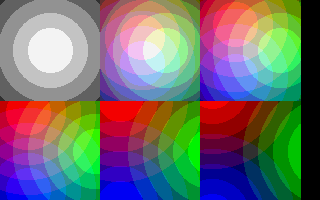

The palette in action: six tiles filled with concentric circle fills, one tile per color family – greyscale, pastels and saturated primaries. Because every ring picks its color from the same 216-entry palette, the demo doubles as a visual index of what the palette can express.
The dithering process helps to mitigate the limitations of the 256-color palette, making the gradients appear smoother to the eye:
The same tiles re-rendered with dithering: radial gradients now blend smoothly from the center outward, mixing palette colors in checkerboard pixels to fake the shades in between. The eye averages the speckles into continuous color, stretching the 256-color limit much further than flat fills could.
6.4. Alarm 1
This QBasic program simulates the sound of a security alarm siren. It creates an oscillating sound effect by varying the frequency of the primary tone, mimicking the familiar rise-and-fall pattern of a siren.
The program works by initializing a frequency variable and playing a primary oscillating tone alongside secondary fixed-frequency tones. This combination produces a realistic alarm sound. The frequency of the primary tone increases and decreases within set thresholds, controlled by conditional checks and loops.
' Program to play sound that resembles security alarm. ' This program is free software: released under Creative Commons Zero (CC0) license ' by Svjatoslav Agejenko. ' Email: svjatoslav@svjatoslav.eu ' Homepage: http://www.svjatoslav.eu ' ' Changelog: ' ?, Initial version ' 2024 - 2025, Enhanced program readability SCREEN 1 CLS ' Initialize main frequency control variable ' This will create the oscillating siren effect by increasing/decreasing value currentFrequency = 40 StartLoop: ' Play primary oscillating tone (main siren component) ' Frequency sweeps up and down between thresholds SOUND currentFrequency, .3 ' Add secondary fixed-frequency component (200Hz for 1 duration unit) ' Creates layered audio effect that makes alarm more realistic ' Duration parameter uses QBasic's time units (1 ≈ 0.05 seconds) SOUND 200, 1 ' Rapidly increase frequency for ascending siren sweep ' Jump amount (100) creates dramatic pitch jumps currentFrequency = currentFrequency + 100 ' Check if we've exceeded upper frequency threshold (1000Hz) ' If yes, switch to descending phase IF currentFrequency > 1000 THEN GoTo DecreaseFrequency ' Repeat ascending sweep until reaching maximum threshold GOTO StartLoop DecreaseFrequency: ' Continue playing oscillating tone during descending phase SOUND currentFrequency, .3 ' Add high-pitched pulse (500Hz for short duration) ' Creates distinctive alarm "warble" pattern ' Shorter duration (.2) adds rhythmic pulsing SOUND 500, .2 ' Gradually decrease frequency for descending sweep ' Smaller decrement (10) creates slower descent than ascent currentFrequency = currentFrequency - 10 ' Check if we've dropped below lower threshold (200Hz) ' If yes, restart ascending phase to complete siren cycle IF currentFrequency < 200 THEN GoTo StartLoop ' Continue descending sweep until reaching minimum threshold GOTO DecreaseFrequency
Download source code: Alarm 1.bas
6.5. Alarm 2
This QBasic program generates a security alarm sound effect by alternating between two distinct audio patterns. The first pattern features an ascending sweep of frequencies from 100 Hz to 1000 Hz, paired with a counterpoint tone that decreases in frequency. The second pattern involves a descending sweep from 1000 Hz back to 100 Hz, enhanced with a harmonic overtone to create a richer sound texture.
' This program generates a security alarm sound effect with two alternating patterns DEFINT A-Z ' Start of infinite alarm cycle 1 ' Pattern 1: Ascending frequency sweep with counterpoint tone ' Increase primary frequency from 100Hz to 1000Hz in steps of 3Hz FOR ascendingFrequency = 100 TO 1000 STEP 3 ' Play main ascending tone SOUND ascendingFrequency, .05 ' Generate counterpoint tone that decreases as primary increases ' Formula creates complementary frequency by subtracting double current frequency ' At 100Hz -> 5000-2*100=4800Hz; At 1000Hz -> 5000-2*1000=3000Hz counterToneFrequency = 5000 - (ascendingFrequency * 2) SOUND counterToneFrequency, .1 NEXT ascendingFrequency ' Pattern 2: Descending frequency sweep with harmonic enhancement ' Decrease frequency from 1000Hz back to 100Hz in larger steps (-5) FOR descendingFrequency = 1000 TO 100 STEP -5 ' Play main descending tone SOUND descendingFrequency, .05 ' Add harmonic overtone at triple frequency plus small offset ' Creates richer, more complex sound texture harmonicFrequency = (descendingFrequency * 3) + 10 SOUND harmonicFrequency, .05 NEXT descendingFrequency ' Continuously repeat between both sound patterns GOTO 1
Download source code: Alarm 2.bas
6.6. 4D engine
Implementation of 4 dimensional (4D) engine. It's like 3D (X, Y, Z) but with additional extra dimension that I decided to call Q.
6.6.1. Polygon -> Tetrahedron -> Pentatope
- In 2D world you can have polygon. It takes 3 vertices (points) to define. It is the minimal object in 2D world to have surface.
- In 3D world you can have tetrahedron. It takes 4 vertices to define. It is the minimal object in 3D world to have volume.
- In 4D world you can have 5-cell (aka. pentatope). It takes 5 vertices to define. It is the minimal object in 4D world to have hypervolume (aka. 4D volume).
6.6.2. Planes or rotation in 3D world vs 4D world
In 3D space, the planes of rotation correspond to rotations around the three principal axes, and they are as follows:
- The yz-plane, corresponding to rotation around the x-axis.
- The xz-plane, corresponding to rotation around the y-axis.
- The xy-plane, corresponding to rotation around the z-axis.
In 4D space, there are six possible planes of rotation, which can be described by the combinations of two axes out of four. These are:
- The yz-plane (same as in 3D space)
- The xz-plane (same as in 3D space)
- The xy-plane (same as in 3D space)
- The xq-plane (novel plane)
- The yq-plane (novel plane)
- The zq-plane (novel plane)
6.6.3. Representing higher-dimensional objects through lower-dimensional slices
The concept of representing higher-dimensional objects through lower-dimensional slices involves taking cross-sections along one dimension and viewing the resulting shapes.
Here’s how it applies to both 3D to 2D and 4D to 3D representations:
- Representing a 3D Shape in 2D:
- A 3D object can be represented as a series of 2D slices by taking cross-sections along one axis (e.g., the z-axis). Each slice is a flat, 2D shape that corresponds to the intersection of the 3D object with a plane at a particular position along that axis.
- By stacking these 2D slices together in sequence, you can reconstruct the 3D object. This method is akin to how CT scans create images of the inside of a body by combining multiple cross-sectional X-ray images.
- Representing a 4D Object in 3D:
- Similarly, a 4D object can be represented in 3D space by taking cross-sections along the fourth dimension. Each cross-section is a 3D shape that represents the intersection of the 4D object with a hyperplane at a particular position along the fourth axis (e.g., Q-axis).
- By viewing these 3D slices in sequence, you can form an idea of the structure and shape of the 4D object. This process allows us to visualize a 4D object by observing how the 3D cross-sections change over the fourth dimension.
In both cases, the method of "slicing" allows us to understand and visualize objects in dimensions that we cannot directly perceive, by breaking them down into more manageable and comprehensible lower-dimensional pieces.
6.6.4. Implementation
Current 4D engine renders single pentatope. Each pentatope vertex is defined by 4 coordinates within 4D space:X, Y, Z, Q.
You can rotate pentatope around any plane in 4D space (all 6 are supported). Also you as a viewer can move around any axis in 4D space (all 4 are supported).
4D pentatope is shown on a screen as a series of 3D slices with varying brightness along the new Q axis.
Wireframe rendering is quite useful in this case because it allows to see multiple overlayed 3D shapes at the same time.

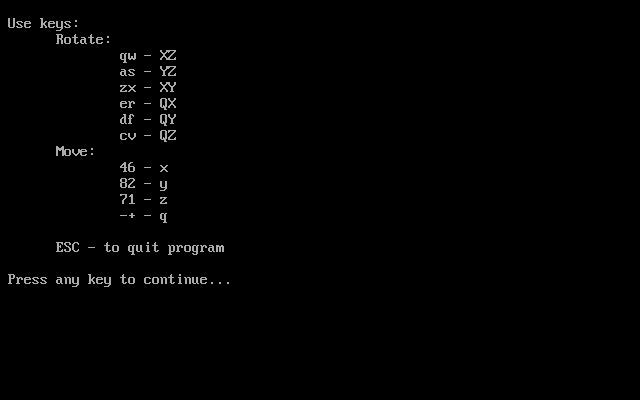

The engine's help screen: the full control map for four dimensions. Keys rotate the pentatope in each of the six 4D planes (qw, as, zx for the familiar XZ/YZ/XY planes, er, df, cv for the novel QX/QY/QZ ones), other key pairs move the viewer along the x, y, z and q axes, and ESC quits.
It is interesting how 3D slices of 4D pentatope stay as familiar tetrahedrons while you rotate the shape along familiar X,Y,Z axis. But shape starts changing in weird ways when you start rotating it along novel planes of 4D space.
Download source code: 4D engine.bas
6.7. Windowing system
This QBasic program implements a text mode windowing system, allowing users to create and manage multiple windows on the screen. Each window can display the contents of a text file and supports horizontal and vertical scrolling. The program is designed to demonstrate basic window management and text display functionalities in a text-based environment.
Windows are drawn on the screen with borders and titles.
The program includes a simple animation loop that shifts the content of the active window, creating a dynamic visual effect.
Overlapping text windows on a dark blue desktop: one window scrolls the demo's own description, others display BASIC source code, each framed with a cyan border and a title bar. The program loads text files into windows, supports horizontal and vertical scrolling and animates the active window's content.
Download source code: Windowing system.bas
6.8. Password lock
This QBasic program simulates a retro-styled rocket control system interface with a password protection mechanism. The program is designed to provide a visually engaging experience reminiscent of early computer systems.
The password is stored in an external file (passw.dat).
The program captures and processes user input for password entry, including handling special keys like Enter and Backspace.
When the user presses Enter, the program checks the entered password against the stored password. If the password is correct, the program exits. If not, it displays an error message and decreases the number of remaining attempts.
The user has three attempts to enter the correct password. After three failed attempts, the program halts and displays a "SYSTEM HALTED" message.
The rocket ground control desktop comes up: an oscilloscope window traces a green waveform, a stack-dump window scrolls binary digits above the words "Running rocket ground control system", and the central dialog demands "ENTER PASSWORD:". Windows with yellow title bars sit on a grey grid backdrop while the program waits for input.
Three wrong guesses later: the central dialog reports "Wrong password / 0 chances left / SYSTEM HALTED SUCCESSFULLY!!" while the oscilloscope and stack-dump windows freeze in the background. The password itself lives in an external passw.dat file, and each failed attempt decrements the remaining-tries counter.
Download source code: passw.bas
6.9. Pressed key test
This tiny QBasic utility shows what the keyboard actually delivers to a program: it waits for a key press with INKEY$, echoes the typed character, and prints the ASCII value of the first and the last character of the returned string – handy for discovering the two-byte codes that extended keys produce.

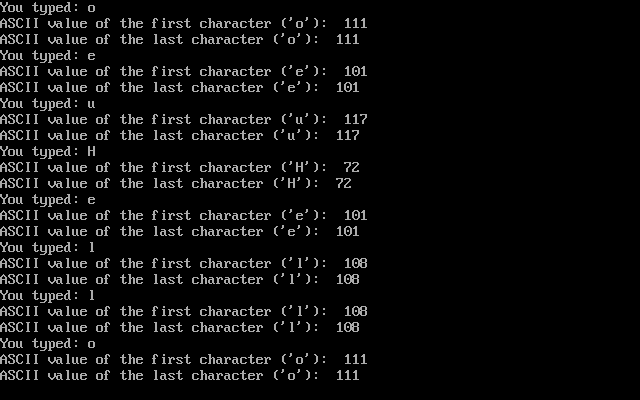

The utility echoing keys as they are pressed: each "You typed:" line repeats the character (o, e, u, then H, e, l, l, o as "Hello" is entered), followed by the ASCII value of the first and last character of the returned string – 72 for 'H'. For ordinary keys the two values match, while extended keys arrive as two-character strings whose codes the program reports separately.
7. Networking
7.1. LPT port pin control
This QBasic program is designed to control the voltage on individual pins of an LPT (Line Print Terminal) port, commonly known as a parallel port. This type of port was traditionally used for connecting printers to computers but can also be used for simple hardware control tasks.
The program allows users to toggle the voltage on each of the 8 pins of the LPT port using keys 1 through 8 on the keyboard. When a key is pressed, the corresponding pin's state is toggled between on (high voltage) and off (low voltage).
The program uses bit manipulation to control individual pins.
The pin control panel: eight numbered positions for the parallel port's data pins, with blue squares lit above the pins that are currently driven high. Pressing keys 1-8 flips the matching bit in the port's data register, raising or dropping the voltage on the corresponding physical pin.
Download source code: LPT pin control.bas
7.2. COM port text terminal
The COM port, short for "Communication Port" was a serial port interface found on older personal computers. It was primarily used for serial communication, where data is transmitted one bit at a time over a communication channel.
The COM port facilitated bidirectional communication between the computer and connected devices, such as modems, mice, and keyboards.
Typically available as 9-pin (DE-9) connectors, COM ports adhered to the RS-232 standard for serial communication.
Mice, before the prevalence of USB, commonly connected to computers via COM ports, transmitting movement and button-click data through this serial interface.
COM ports operated using a UART (Universal Asynchronous Receiver/Transmitter), which managed the conversion of data between parallel form (used by the computer) and serial form (used by the communication line).
This program is a simple text mode terminal for communicating through a COM port.
How it Works:
- The program continuously checks the COM port status.
- If data is available, it reads the data and prints it to the screen along with its ASCII value.
- It captures keyboard input from the user and sends it out through the COM port.
- This creates a bidirectional communication channel between the user's keyboard and the COM port device, typical of terminal emulation software.
' Simple COM port terminal ' ' This program is free software: released under Creative Commons Zero (CC0) license ' by Svjatoslav Agejenko. ' Email: svjatoslav@svjatoslav.eu ' Homepage: http://www.svjatoslav.eu ' ' Changelog: ' 2003.12, Initial version CLS 1 ' Read the status of the COM port portStatus = INP(&H3FD) ' Check if data is available IF portStatus = 97 THEN ' Read the data from the COM port comData = INP(&H3F8) ' Print the character and its ASCII value PRINT CHR$(comData); PRINT comData; END IF ' Get user input userInput$ = INKEY$ ' If there is any input, print it and send to COM port IF userInput$ <> "" THEN PRINT userInput$; ' Send the ASCII value of the input character to the COM port OUT &H3F8, ASC(userInput$) END IF ' Repeat the process GOTO 1
Download source code: COM port terminal.bas
7.3. Parallel port to COM port text terminal
This QBasic program demonstrates a clever method of transmitting data from a parallel (LPT) port to a serial (COM) port using a technique known as bit-banging.
How It Works:
- The program initializes the parallel port and waits for keyboard input.
- Each character input from the keyboard is converted into its ASCII value.
- The ASCII value is converted into an 8-bit binary array, with each array element representing a bit of the character.
- Each bit is then sent to the parallel port by toggling the output lines accordingly. The bits are transmitted sequentially, simulating serial data transmission.
- A loop holds each bit value for a predefined duration, mimicking clock cycles necessary for serial communication.
- The program exits when the Escape key is pressed.
' This is quite unusual program. It sends data from LPT port (parallel ' printer port) to COM (serial mouse) port. It does it by bit-banging ' the data out of the LPT port. If you connect appropriate wire from ' LPT port output bit (pin #3) to COM port input bit, you can send ' data from LPT to COM. ' ' Note: ' - Ground wire must be connected between LPT and COM ports too. ' - Use this program at your own risk. It may not work on your system or may even damage it. ' ' This program is free software: released under Creative Commons Zero (CC0) license ' by Svjatoslav Agejenko. ' Email: svjatoslav@svjatoslav.eu ' Homepage: http://www.svjatoslav.eu ' ' Changelog: ' 2002, Initial version ' 2024, Improved program readability DEFINT A-Z DECLARE SUB sendChar (char$) DIM SHARED port port = &H378 ' LPT port PRINT "Type something. All keyboard strokes will be transmitted." PRINT "ESC to exit" 1 inputChar$ = INPUT$(1) IF inputChar$ = CHR$(27) THEN SYSTEM PRINT inputChar$; sendChar inputChar$ GOTO 1 SUB sendChar (char$) ' Convert the character into its ASCII value asciiValue = ASC(char$) DIM bitArray(0 TO 8) bitArray(0) = 0 bitArray(8) = 0 bValue = 64 cIndex = 7 2 ' Convert the ASCII value into a binary representation IF asciiValue >= bValue THEN bitArray(cIndex) = 1 asciiValue = asciiValue - bValue ELSE bitArray(cIndex) = 0 END IF ' Divide the value by 2 and move to the next bit bValue = bValue / 2 cIndex = cIndex - 1 IF cIndex <> 0 GOTO 2 ' Send each bit of the character through the LPT port FOR a = 0 TO 8 IF bitArray(a) = 0 THEN bValue = 255 ELSE bValue = 0 END IF ' Adjust this loop based on your system and QBasic interpreter speed FOR c = 0 TO 9 OUT port, bValue NEXT c NEXT a ' Reset the LPT port to 0 after sending the character OUT port, 0 END SUB
Download source code: LPT to COM port data transfer.bas
7.4. LPT communication driver
TSR driver that allows 2 computers to communicate over parallel port serially.
7.5. Data over analog audio CODEC
Utilities to encode digital data to sound file and back.
The decoder at work: columns list each recovered byte as binary, decimal, hexadecimal and character while the program searches the digitized audio for the sync pattern ("searching for beginning… Beginning point found!") and completes its statistical analyze pass. On the right a crosshair walks the recovered bit grid, and the decoded sample message prints at the bottom.
7.6. Morse
This QBasic program allows users to input text and hear it played back in Morse code using the PC speaker. It's a fun and educational tool for anyone interested in learning Morse code.
It reads Morse code patterns from an external file named Morse.txt. Each line in the file represents a character and its corresponding Morse code:
a .- b -... c -.-. d -.. e . f ..-. g --. h .... i .. j .--- k -.- l .-.. m -- n -. o --- p .--. q --.- r .-. s ... t - u ..- v ...- w .-- x -..- y -.-- z --.. 0 ----- 1 .---- 2 ..--- 3 ...-- 4 ....- 5 ..... 6 -.... 7 --... 8 ---.. 9 ----.
For each character in the input text, the program looks up its Morse code pattern and plays it back using the PC speaker. Dots are represented by short beeps, and dashes by longer beeps.

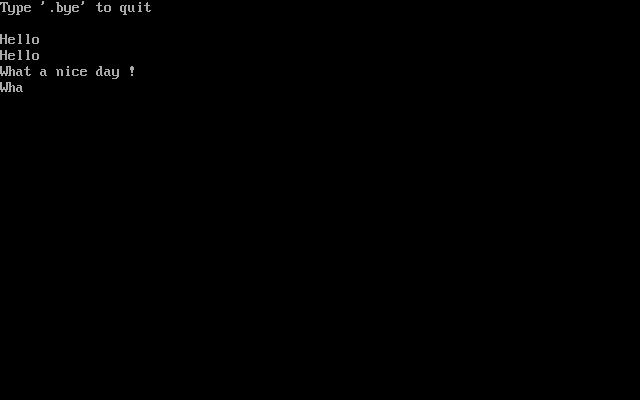

A Morse session in the text screen: after the "Type '.bye' to quit" hint, each typed line ("Hello", "What a nice day !") is echoed back while the PC speaker beeps out every character's dot and dash pattern looked up from Morse.txt – short beeps for dots, long ones for dashes.
Download source code: Morse.bas
8. Tutorial
8.1. Quicksort visualization
This QBasic program visualizes a recursive quicksort on 45 random values in an 80x50 text screen, highlighting the active partition range, the scanning pointers and the split point as the sort progresses, and re-checks the result after every run.
Each row shows one array element (value and index). Instead of a median pivot the program splits each range at the midpoint between its minimum and maximum, shown at the top right (49.5, then 80.5 as the upper partition is sorted). The blue bars mark the two scanning pointers that walk towards each other swapping out-of-place elements, the red bar marks the range endpoints of the active partition, and the split index flashes yellow before the recursion descends into the two halves. When a run finishes, the program verifies the array is ordered and, on any failure, restores the original data and re-sorts it step by step waiting for a keypress per redraw.
Download source code: qsort3.bas
9. Download
9.1. Getting the source code
Programs author is Svjatoslav Agejenko
- Homepage: https://svjatoslav.eu (See also other software projects.)
- Email: mailto://svjatoslav@svjatoslav.eu
These programs are free software: released under Creative Commons Zero (CC0) license.
- Browse Git repository online.
- Download latest snapshot in TAR GZ format.
You can clone Git repository using git:
git clone https://www3.svjatoslav.eu/git/qbasicapps.git
9.2. Installation and Usage
To run these programs, you can copy them onto computer or virtual machine that has Microsoft DOS and QBasic or QuickBasic installed.
Alternatively you can use pure Java BASIC interpreter called CRT Basic.
10. See also
- Programs found in the March 1975 3rd printing of David Ahl's 101 BASIC Computer Games, published by Digital Equipment Corp: https://github.com/maurymarkowitz/101-BASIC-Computer-Games
- QB64 is a modern extended BASIC programming language that retains QBasic/QuickBASIC 4.5 compatibility and compiles native binaries for Windows, Linux, and macOS: https://qb64.com/
